Technical Overview

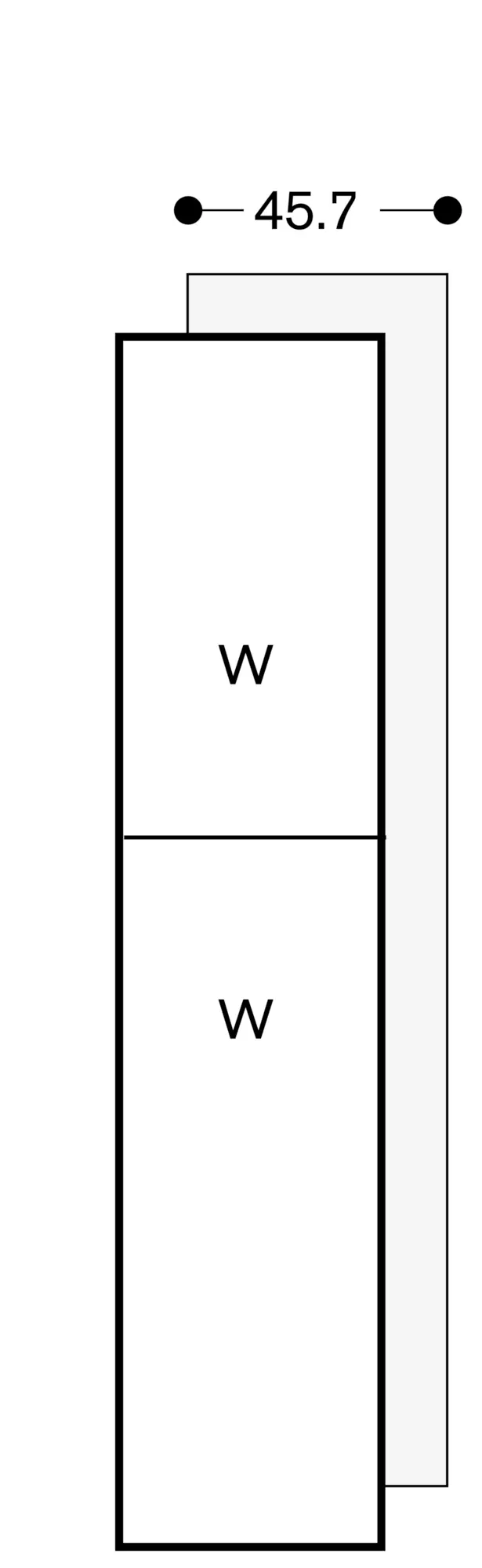

Width of the appliance
451 mm
Capacity of 75 cl bottles (EU 2017/1369)
70
Airborne acoustical noise emissions (EU 2017/1369)
42 dB(A) re 1pW
Range of temperature (°C)
5-20 °C
Airborne acoustical noise emission class (EU 2017/1369)
D
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Highlights
Special Features
Five preset lighting scenarios
Independent climate zones from 5° to 20°
Humidity control
Vibration control
Specifications
2 independently controllable climate zones
Consistent temperatures with exact control from +5 °C to +20 °C
Humidity control
Stainless steel interior
Fully extendable bottle trays in oak wood and solid aluminium in anthracite
Bottle trays with hidden telescopic rails
Warm white and glare-free LED light spots
5 preset lighting scenarios, selectable via TFT display
Opening assist for door with two options:
1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
Low-vibration operation
TFT touch display
Capacity 70 bottles
TFT touch display operation.
Clear text display.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Cushioned door closing system.
Activated charcoal air filter.
UV-protection.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction alarm.
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

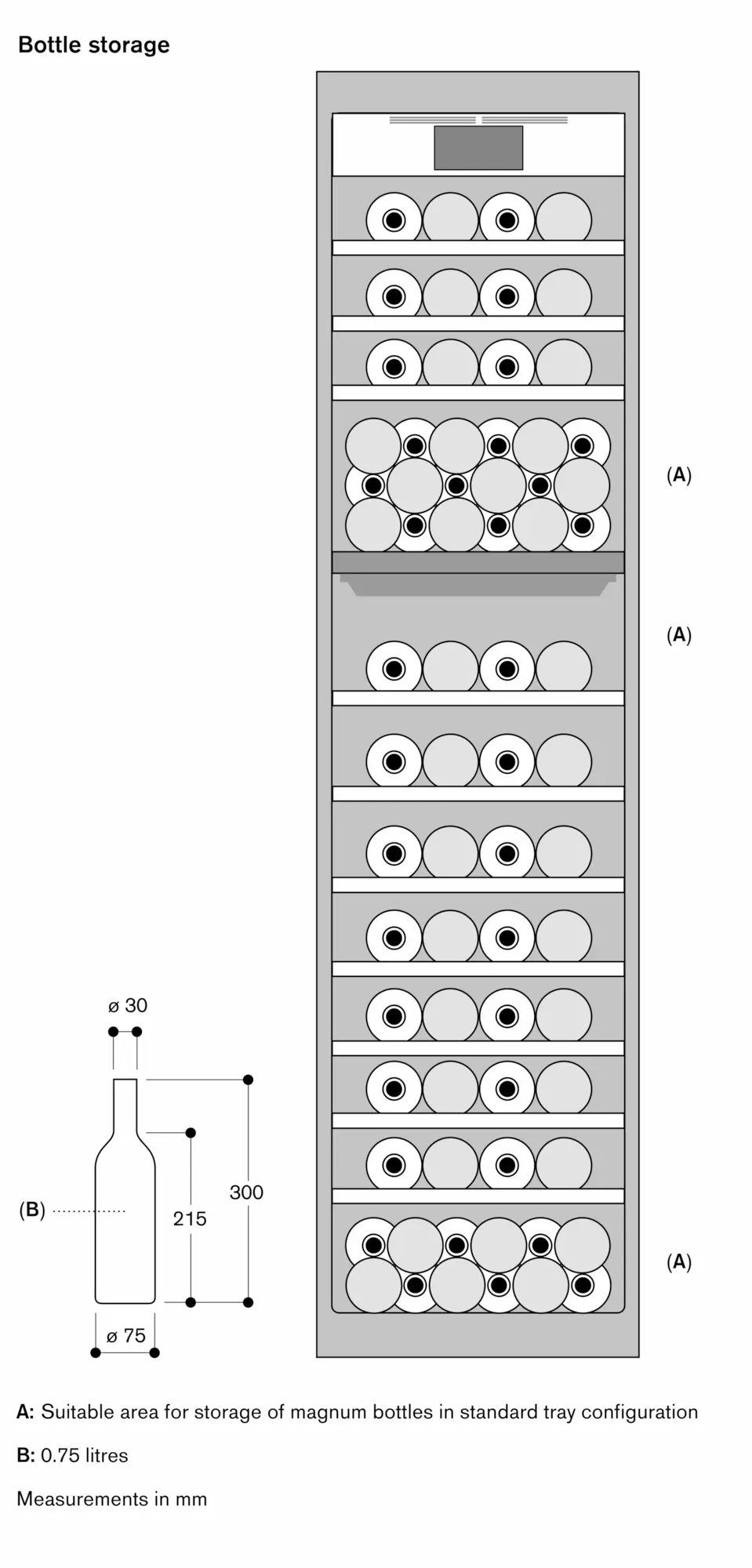

Capacity 70 bottles (based on 0.75 l standard bottles).
12 bottle trays,
-10 fully extendable trays - 3 suitable for storage of Magnum bottles.
Flexible interior configuration possible by adding or removing fully extendable bottle trays.
Storage of up to 6 Magnum bottles with standard tray configuration (12 bottle trays).
Space for max. 13 bottle trays.
5 different lighting scenarios can be selected for individual wine presentation.
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°, fixable at 90°.

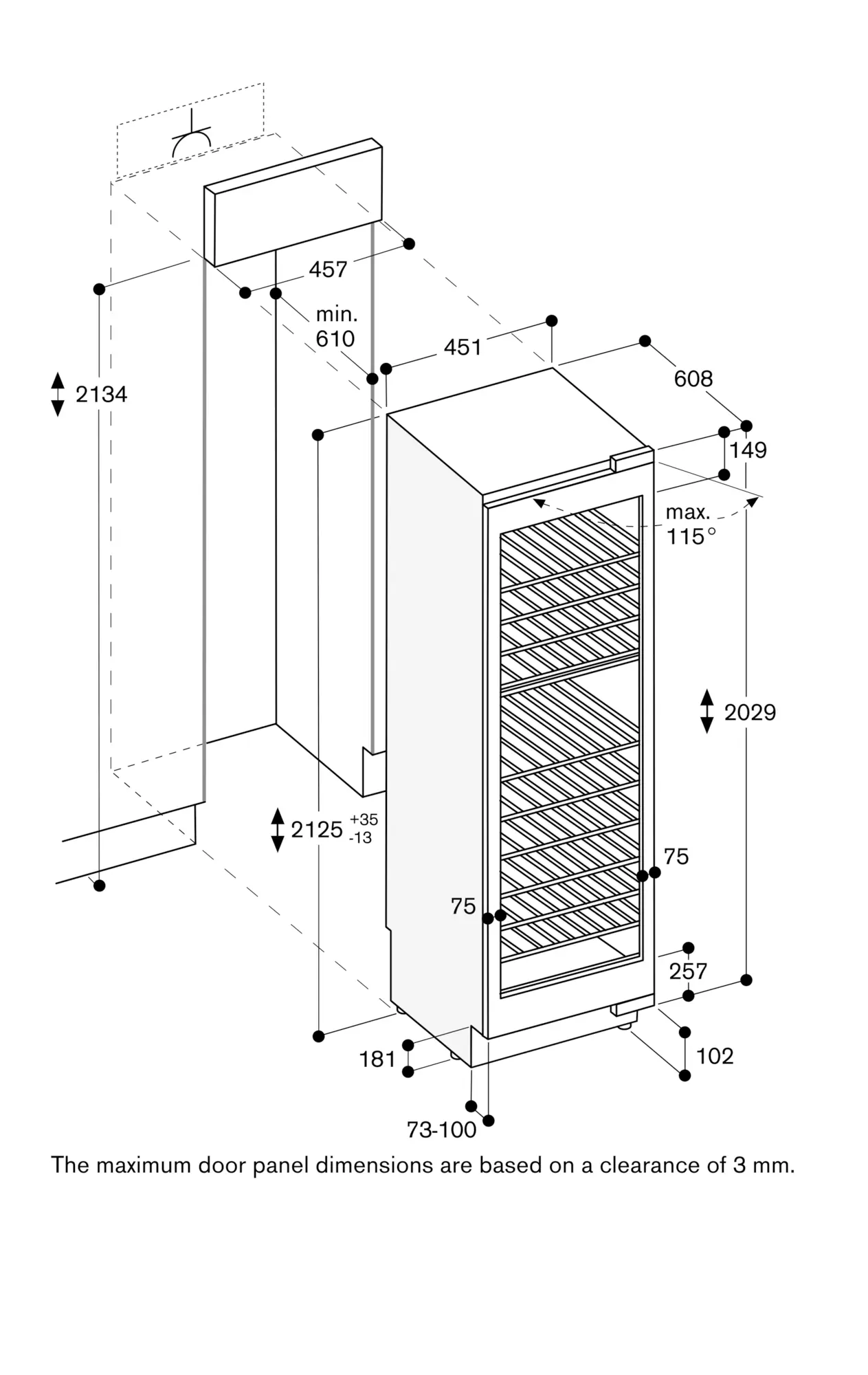

Max. door panel weight 76 kg.
The mains socket needs to be planned outside the built-in niche.
Total connected load 0.300 KW.
Connecting cable 3.0 m, detachable.
