200 Series Induction hob with integrated ventilation system 80 cm

CV282111

Sturdy stainless steel frame

Flex function for combining the rectangular cooking areas

Free positioning of cookware inside combined cooking areas

Highly efficient ventilation system integrated in the cooktop

Fully automatic ventilation system functions

Large metal grease filters, easy to remove, dishwasher-safe

Energy-saving, low-noise fan

Air extraction or air recirculation system

Integrated activated charcoal filter easily removeable from above for air recirculation system

Twist-Pad control with removable magnetic knob

Easy control of all functions with bicoloured display

2 flex induction cooking areas 19x23 cm (2200 W, with booster 3700 W), linked together 38x23 cm (3300 W, with booster 3700 W).

Performance and noise output levels:

Air output according to EN 61591. Sound power level according to EN 60704-3.

Air extraction (min/max): 359 / 636m³/h.

Nois air extraction (min/max):61 / 74 dB(A).

Air recirculation (min/max): 487 / 611m³/h.

Noise recirculation (min/max):67 / 72 dB(A).

Twist-Pad control with removable magnetic knob.

User friendly control with bicoloured display (white / orange).

Cooking zone and cooking area marking.

Electronic power control in 17 cooking power levels.

Control of ventilation system with 3 electronically controlled power levels and 1 intensive mode.

Flex function for rectangular cooking areas.

Automatic pot detection when the cooktop is switched on.

Professional cooking function.

Booster function for pots.

Booster function for pans.

Keep warm function.

Automatic sensor-controlled performance adjustment of the ventilation system.

Automatic activation of the ventilation system when a cooking zone is used.

Interval ventilation, 6 min.

Removable, dishwasher-safe grease filter unit.

High-grade black zinc die-casted cover for ventilation system, dishwasher-safe.

Fan technology with highly efficient, brushless DC motor (BLDC).

Airflow-optimised interior for efficient air circulation.

Stopwatch.

Cooking timer for up to 99 minutes.

Short-term timer.

Memory function.

Options menu.

Power management.

Home network integration for digital services (Home Connect) wireless via WiFi.

The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Main switch.

Operation indicator.

Pot detection.

digital 2-step

Child lock.

Safety shut-off.

Detachable, dishwasher-safe two-stage overflow protection.

Removable overflow container, 900ml capacity, dishwasher safe.

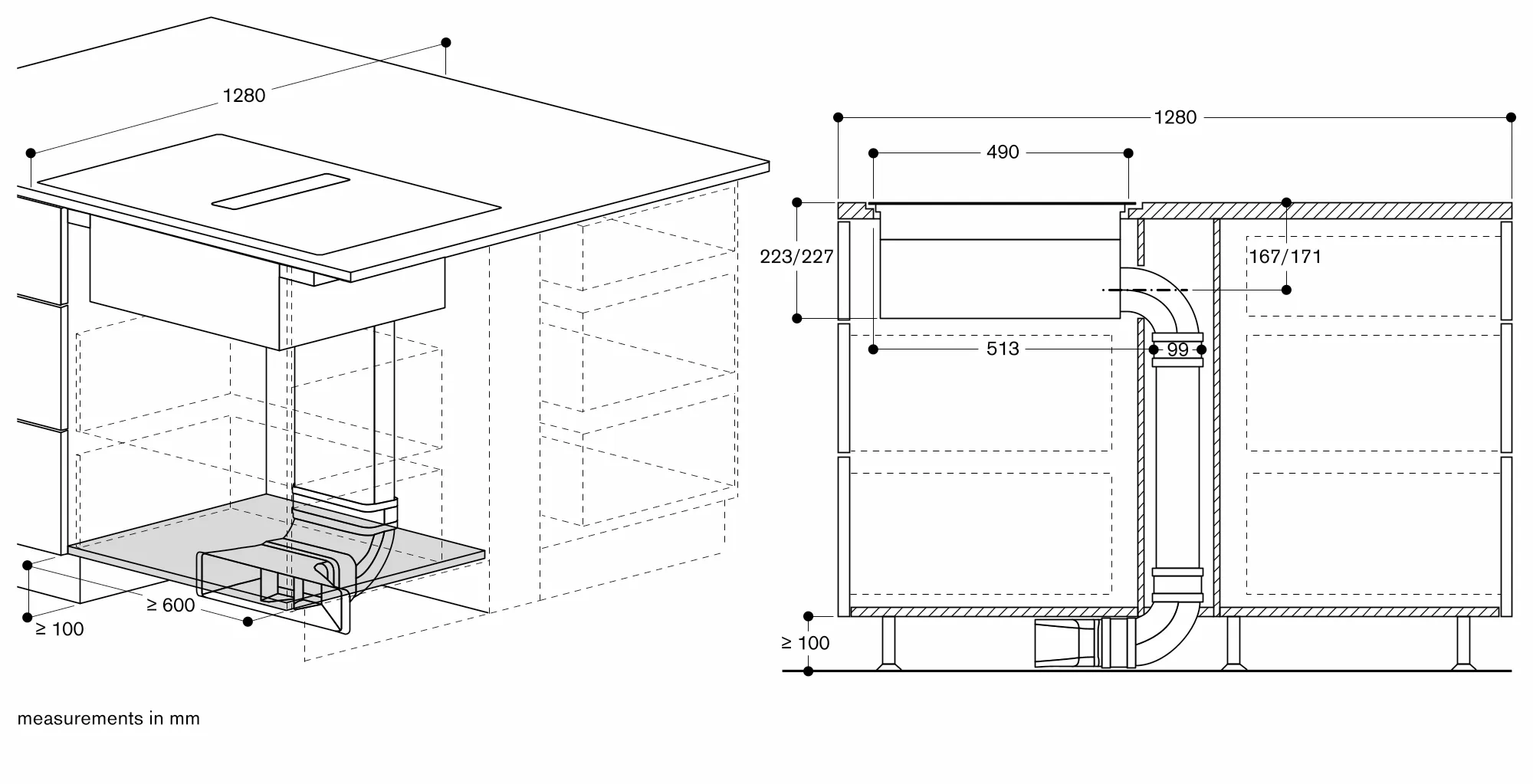

Must be ordered & installed with one of the following Gaggenau kits:

CA084010 installation kit for fully ducted extraction.  CA082010 installation kit for air recirculation.  CA082020 installation kit for partially ducted recirculation.  All further necessary flat ducting elements (DN 150) must be ordered separately.

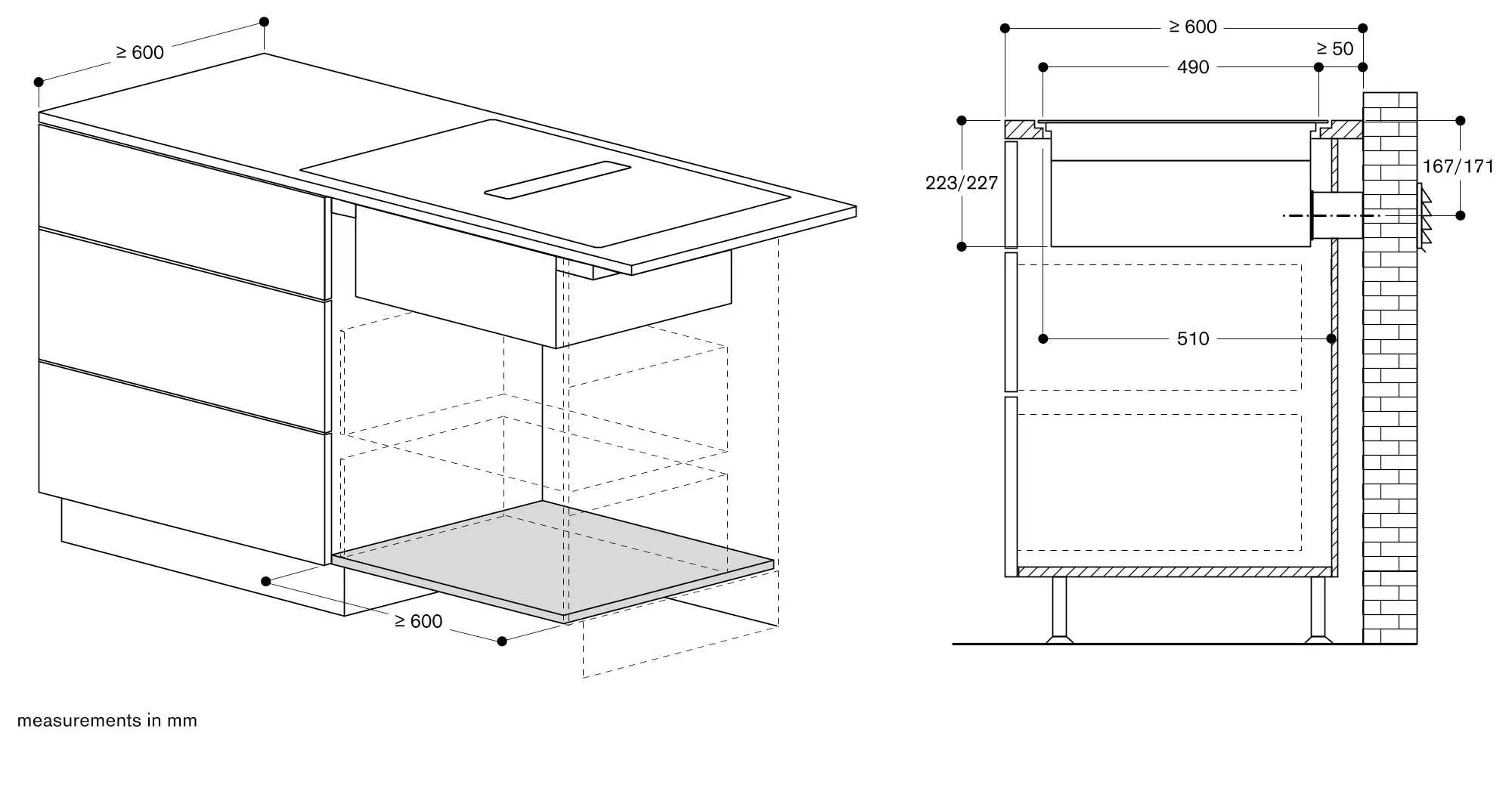

The unducted recirculation set CA082010 requires a vertical aperture of min. 25 mm behind the backpanel of the furniture. Suggested for ideal performance are 50 mm.

Bottom cabinet width: min. 60 cm.

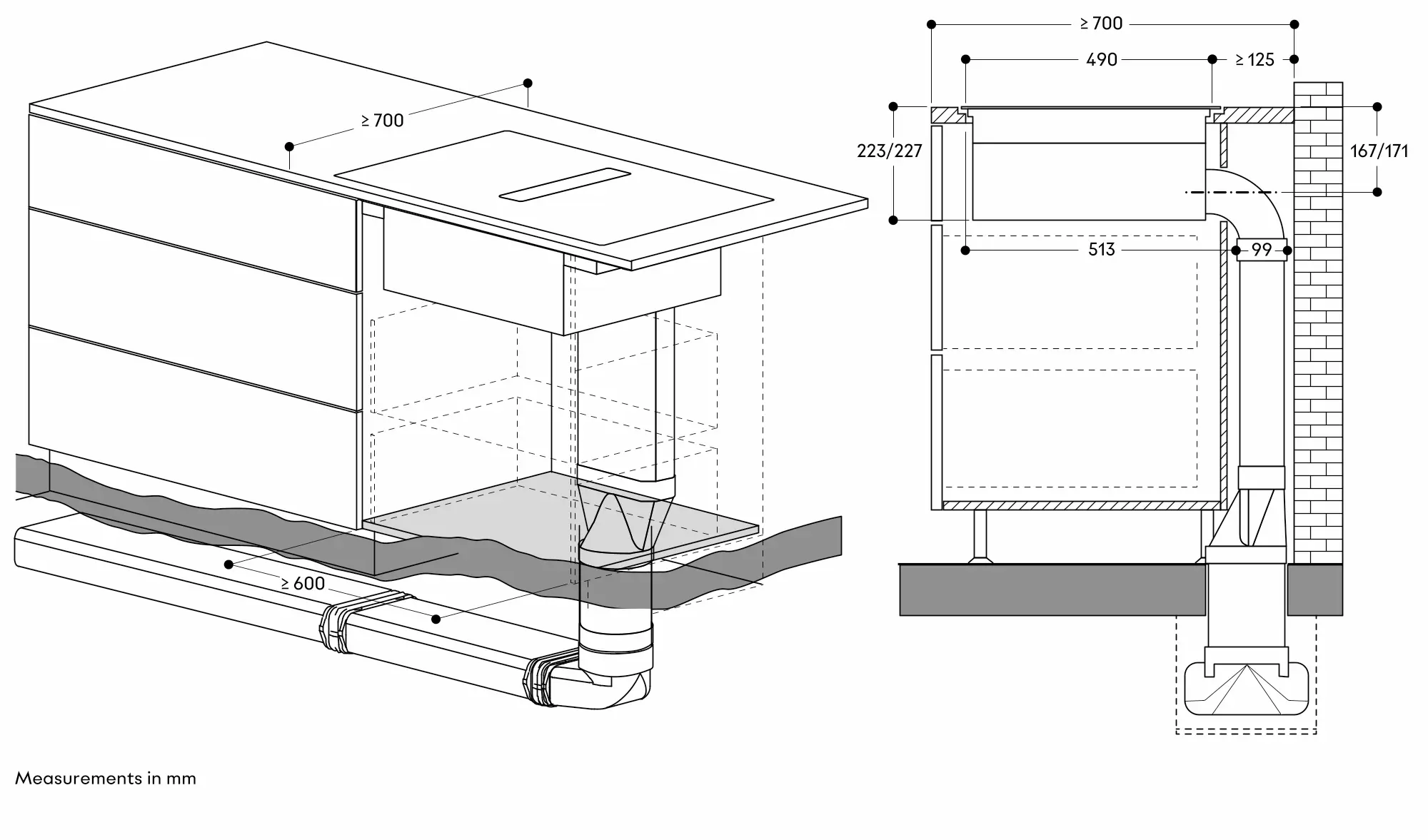

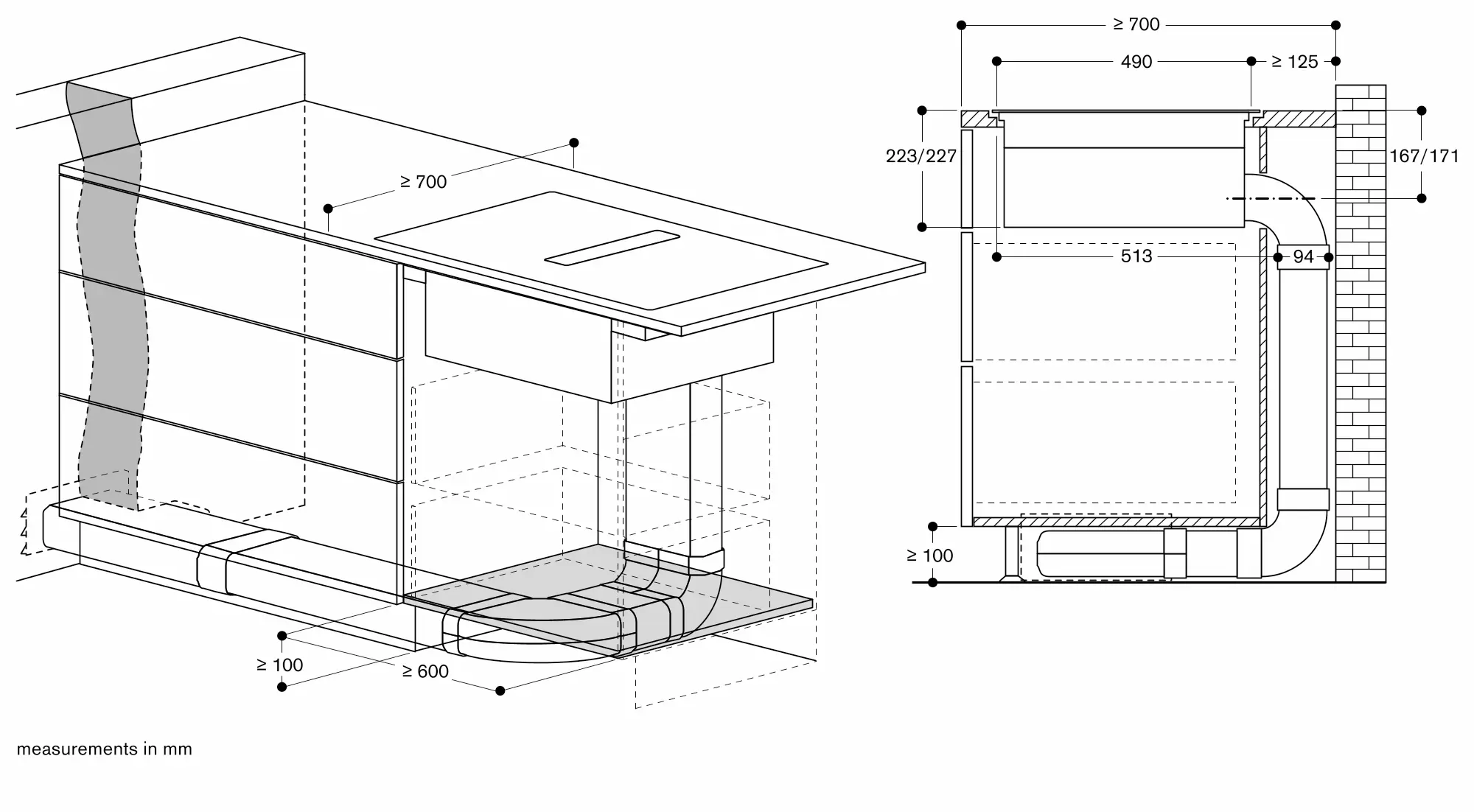

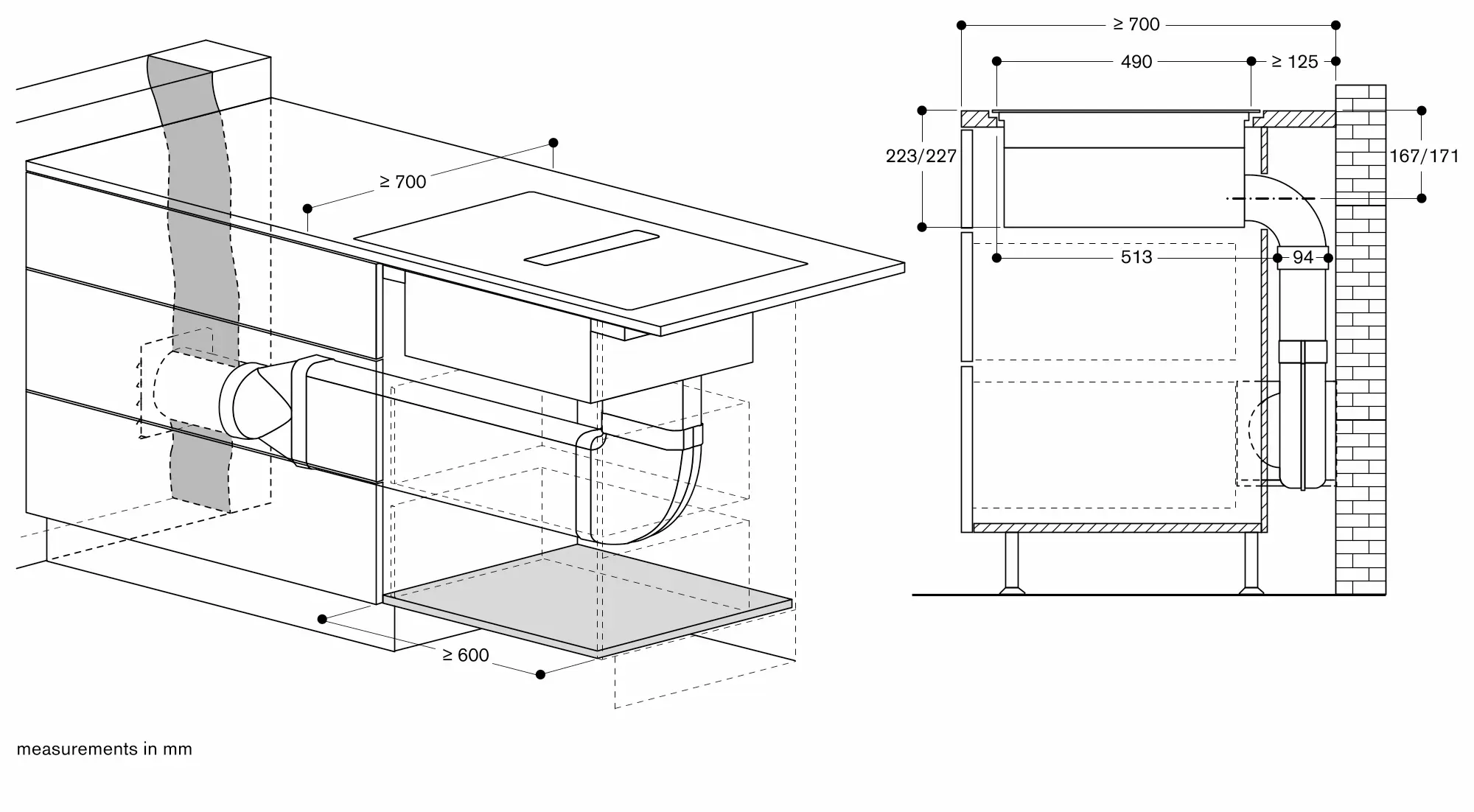

Worktop depth: min. 60 cm with unducted recirculation, min. 65 cm with ducted recirculation/extraction.

Immersion depth 223 mm.

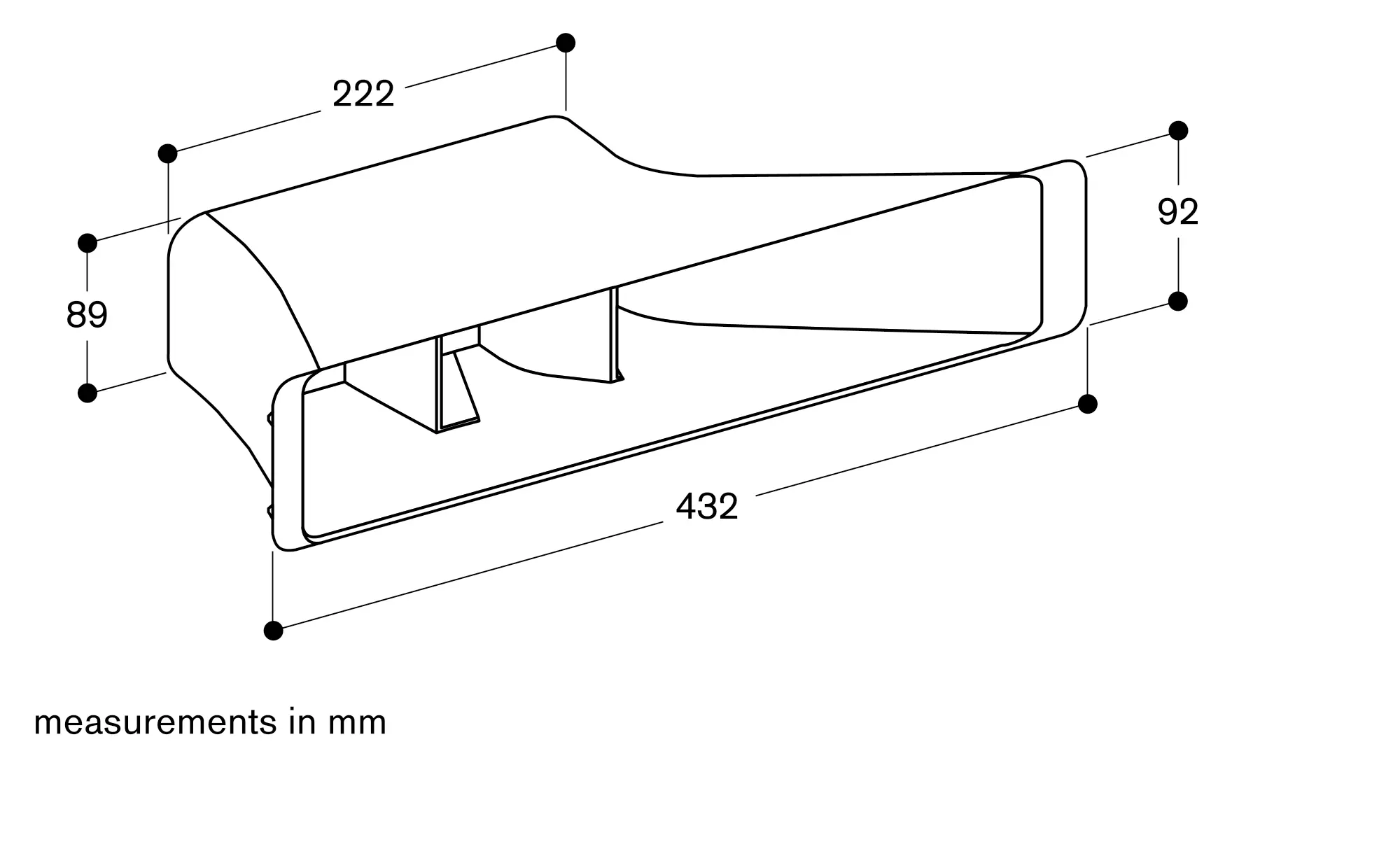

The air outlet on the backside of the appliance can directly be accessed with a flat duct element (DN 150).

In air extraction a one-way flap with a maximum opening pressure of 65 Pa should be installed.

For optimum performance in air recirculation we recommend an outflow surface area of at least 440 cm².

Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.

The pressuredrop resistant blower allows for ductings up to 8 m with 3 x 90° bows while keeping sufficient performance.

Appliance must be fixed from underneath.

Appliance weight: approx. 28. kg

The appliance must be freely accessible from below.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.

The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.

Total connected load 7.4 KW.

Connecting cable 1.5 m without plug.
