BMP250130

Product is no longer available

More information and services related to this product

1 / 7
Photo Nr. 1 of the product BMP250130
Photo Nr. 2 of the product BMP250130
Photo Nr. 3 of the product BMP250130
Photo Nr. 4 of the product BMP250130
Photo Nr. 5 of the product BMP250130
Photo Nr. 6 of the product BMP250130
Photo Nr. 7 of the product BMP250130
Photo thumb Nr. 1 of the product BMP250130
Photo thumb Nr. 2 of the product BMP250130
Photo thumb Nr. 3 of the product BMP250130
Photo thumb Nr. 4 of the product BMP250130
Photo thumb Nr. 5 of the product BMP250130
Photo thumb Nr. 6 of the product BMP250130
Photo thumb Nr. 7 of the product BMP250130
Photo thumb Nr. 1 of the product BMP250130
Photo thumb Nr. 2 of the product BMP250130
Photo thumb Nr. 3 of the product BMP250130
Photo thumb Nr. 4 of the product BMP250130
Photo thumb Nr. 5 of the product BMP250130
Photo thumb Nr. 6 of the product BMP250130
Photo thumb Nr. 7 of the product BMP250130

Technical Overview

Installation typology
Built-in
Dimensions (HxWxD)
455x590x559 mm
Microwave power levels (W)
90, 180, 360, 600, 1000 W
Main colour of product
Gaggenau Silver
Cavity capacity
36 l
Integrated Cleaning system
Catalytic partial
Number of automatic programmes
15
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No

Specifications

Flush installation
Single operation and combination of microwave, grill and oven
Sequential operation of up to 5 modes incl. programming of combined operation and rest time
TFT touch display
Panel-free appliance with surface control module
Electronic temperature control
Interior volume 36 litres
Microwave operation with 5 output levels: 1000, 600, 360, 180, 90 W.
Oven operation with 4 heating methods:
Hot air 40 °C and from 100 °C to 250 °C, Full surface grill + hot air from 100 °C to 250 °C, Full surface grill + circulated air from 100 °C to 250 °C, Full surface grill with 3 levels of intensity, maximum output 2000 W.
Heating methods with microwave output levels 600, 360, 180 and 90 W freely combinable.
15 automatic programmes with weight indication, customisable:
4 defrosting programmes 4 cooking programmes 7 combination programmes
Option to save individual recipes.
Rotary knob and TFT touch display operation.
Clear text display.
Information key with use indicators.
Side-opening door opens up to 110° angle.
Innowave.
Rapid heating.
4 tray levels.
Actual temperature display.
60 W halogen light on the side.
Thermally insulated door with triple glazing.
Triple door lock.
Child lock.
Safety shut-off.
Cooled housing with temperature protection.
Hygienic stainless steel interior with glass ceramic base.
Interior back wall with catalytic coating.
Door hinge not reversible.

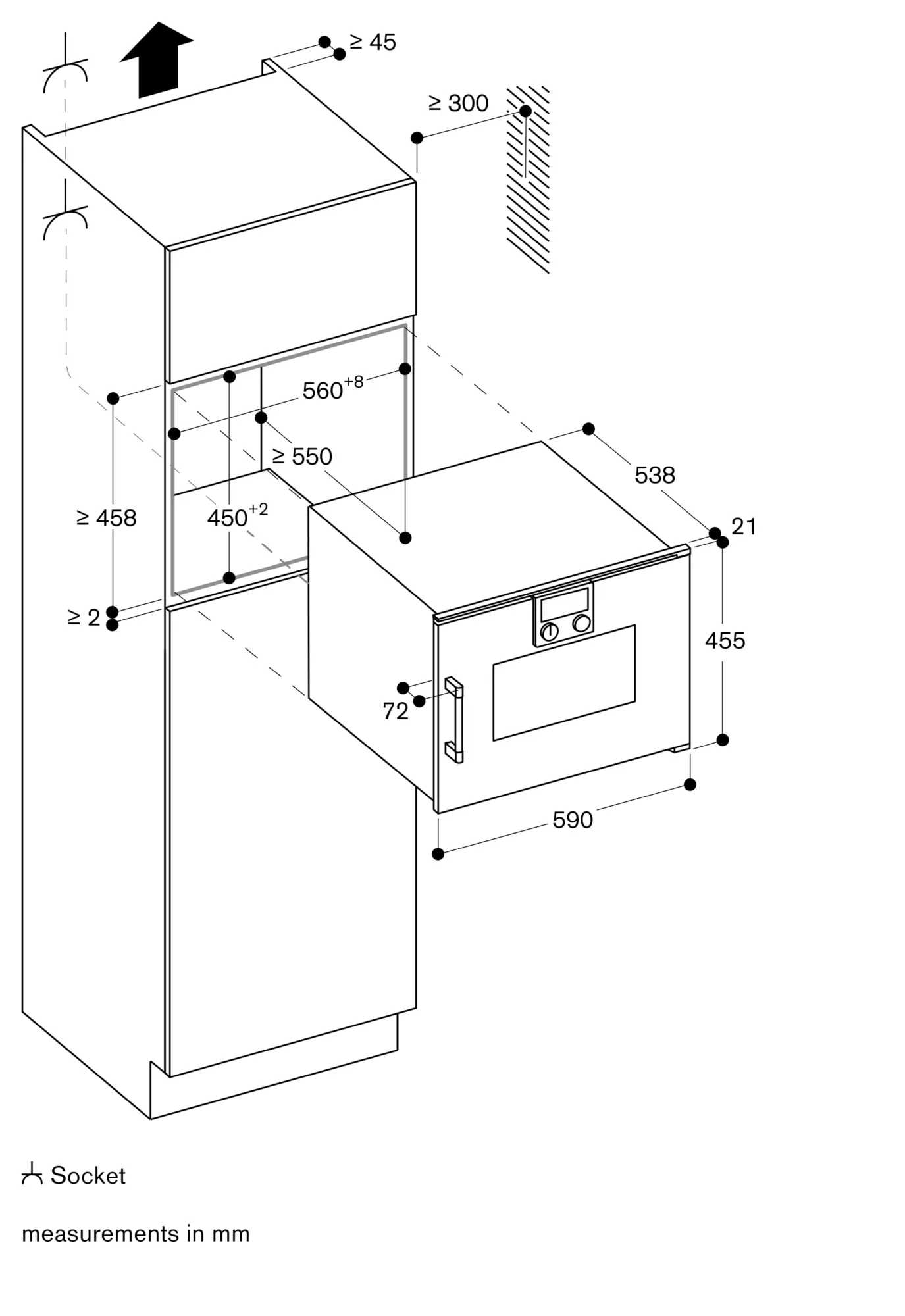

Plan the niche without back wall.
Necessary lateral gap between appliance door and furniture panel of min. 5 mm.
The door panel surface of the appliance extends 21 mm from the furniture cavity.
The outer edge of the door handle extends 72 mm from the furniture cavity.
Consider the overhang, incl. the door handle, when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the 110° door opening angle.
The mains socket needs to be planned outside of the built-in niche.
Total connected load 3.1 KW.
Connection cable 1.5 m without plug.

Manual and Documents

Technical Overview
Specifications
Manual and Documents

Built-in compact oven with microwave function 60 x 45 cm Door hinge: Right, Gaggenau Silver
