Discreet integration into the architecture of the kitchen

Flexible by dimension, performance and ventilation mode

Room ventilation

Modular ceiling ventilation which can be configurated individually by separate components such as filter module, control modules and light module

Motorless, can be combined with Gaggenau BLDC remote fan units

Highly efficient patented rim extraction

Planed and easy to clean underside with covered filters

Power levels depend on the remote fan unit.

Rim extraction filter, dishwasher-safe.

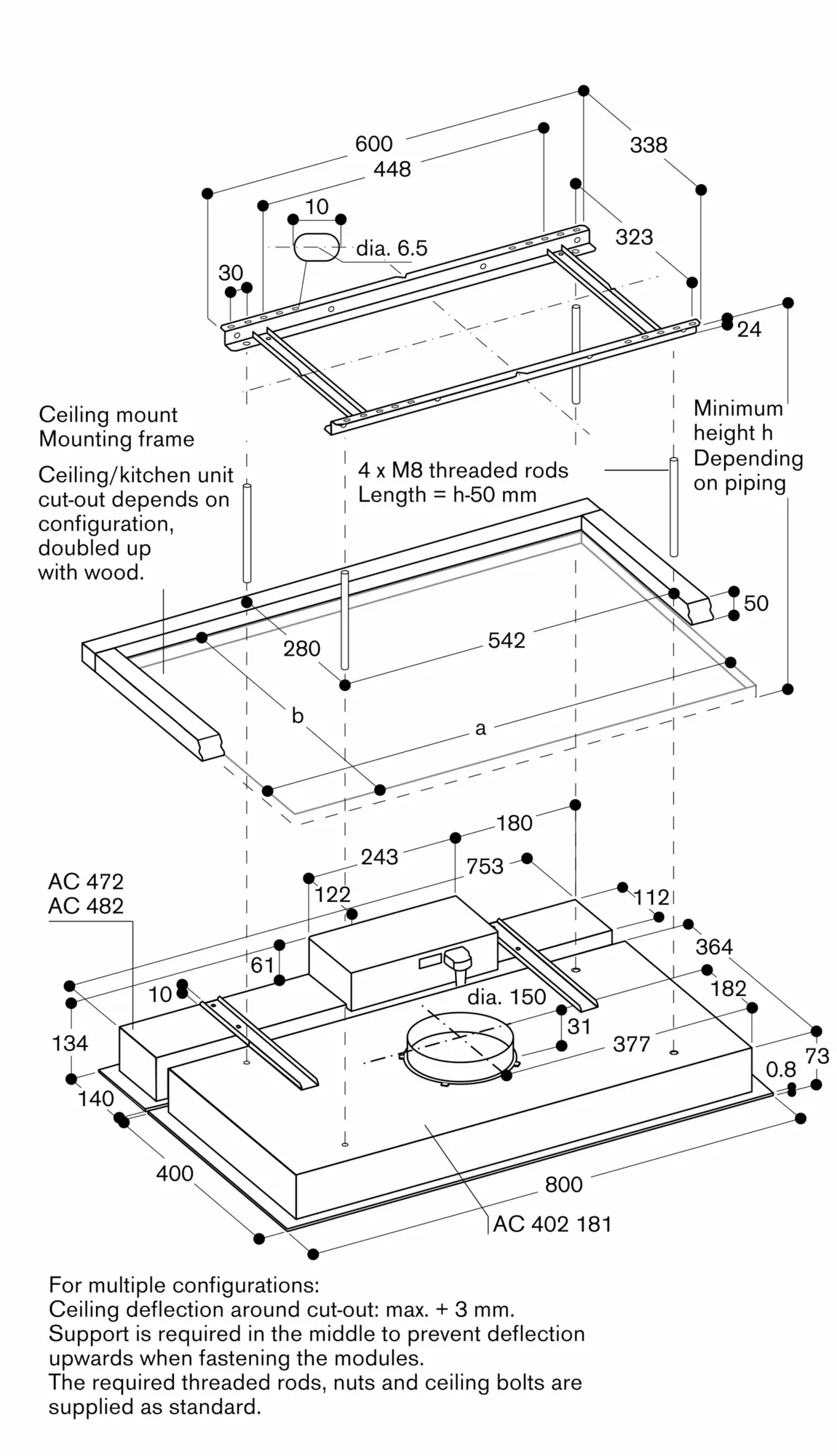

Installation frame for thread rods (threaded rods included in delivery).

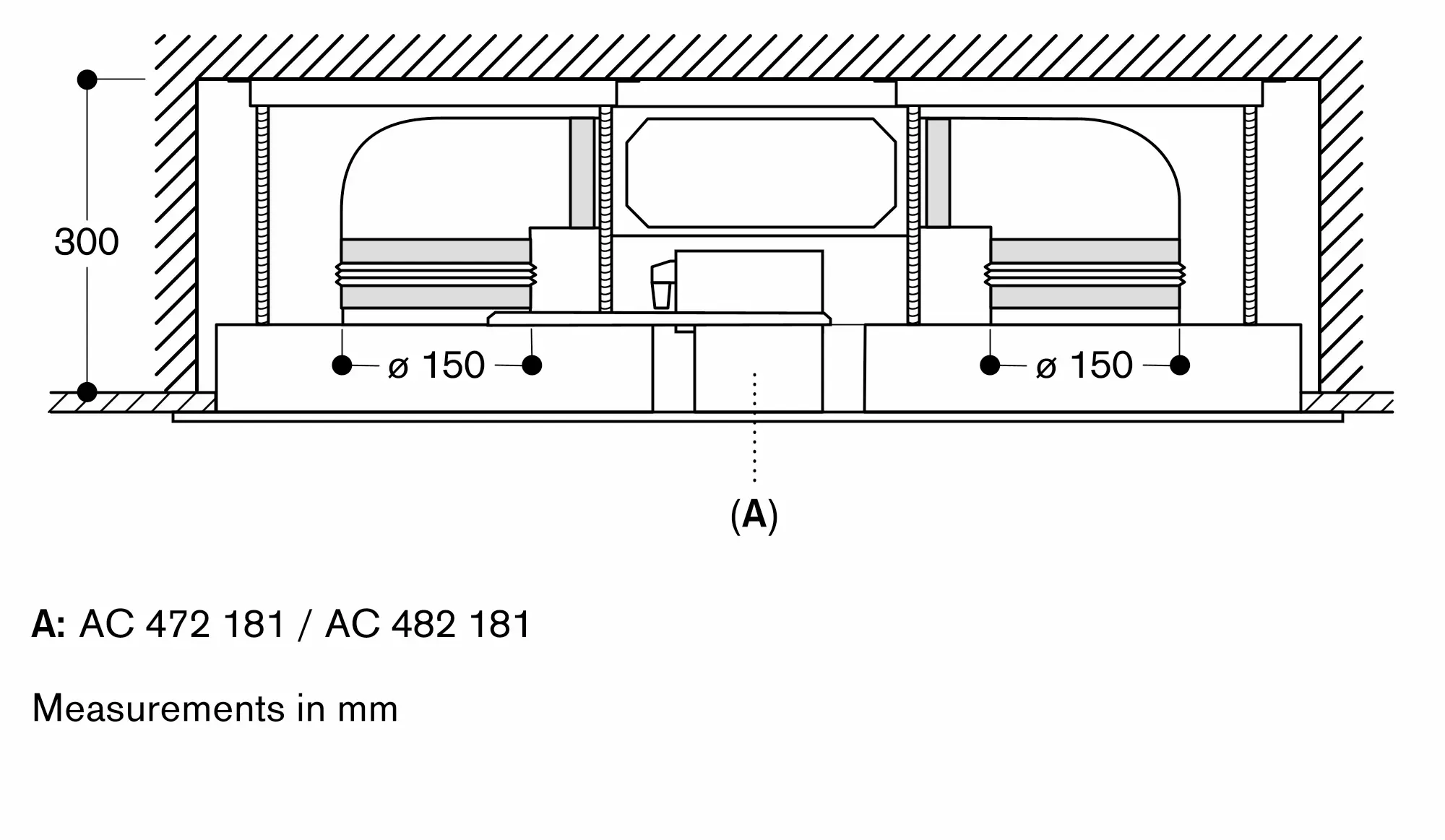

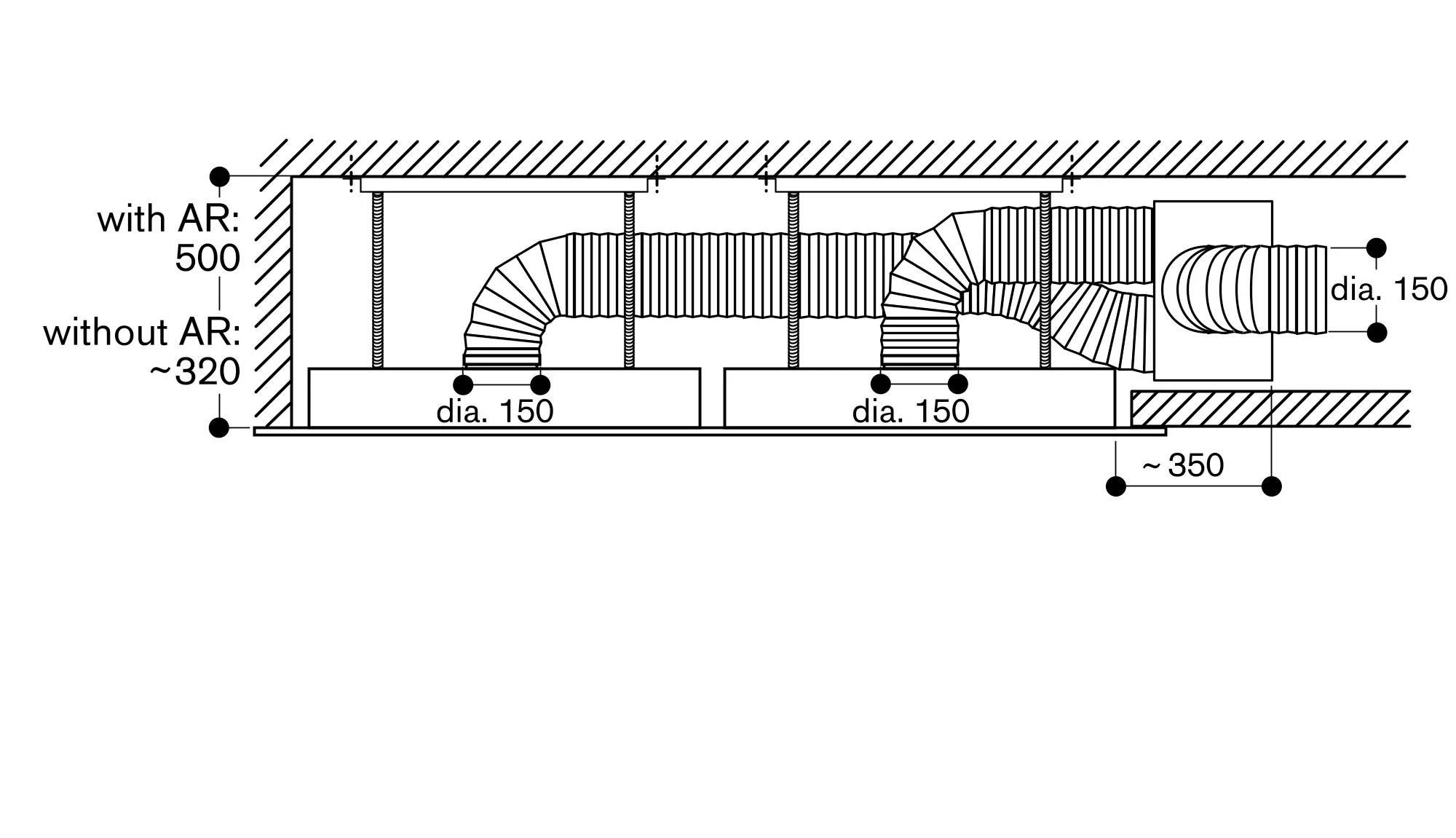

Connecting pipe DW 150 round.

Sound level min/max (intensive) according to EN 61591: 50 / 71 dB(A)

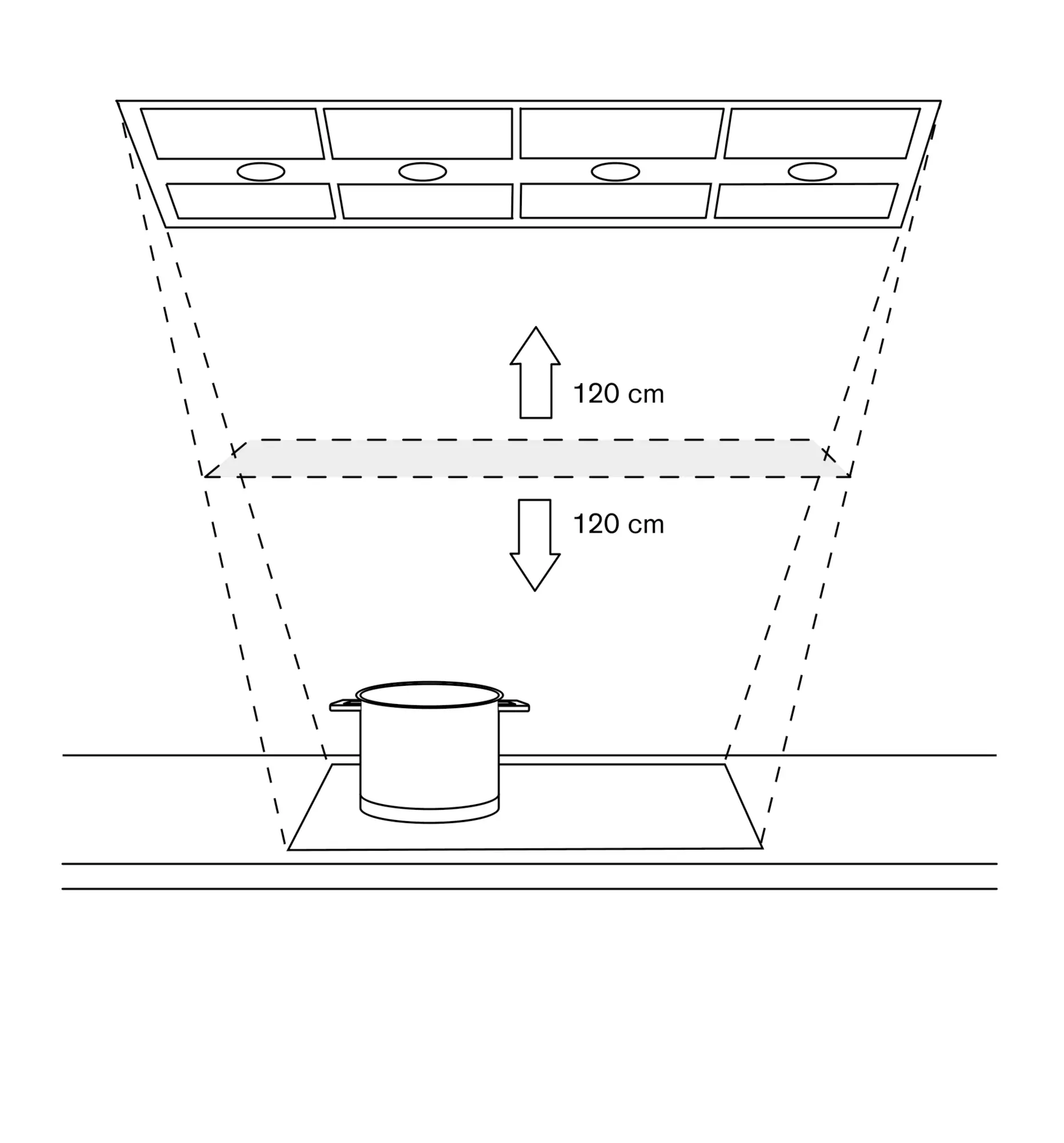

The ceiling ventilation has to be handled as a room ventilation when distance to cooktop is larger than 120 cm since the direct capture of vapours will be limited. The needed airflow is given by an air exchange rate of 10 to 12 times the room volume.

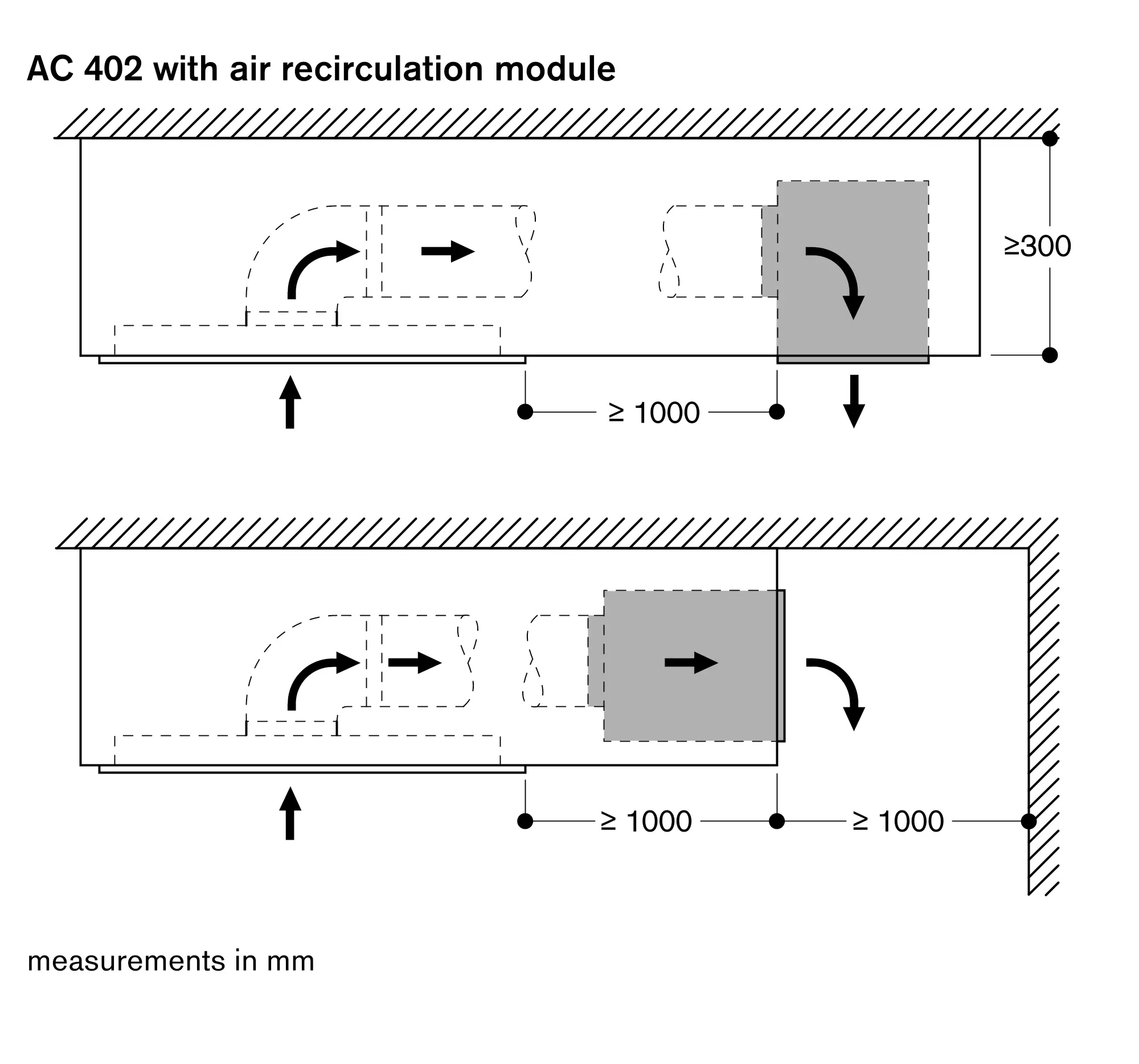

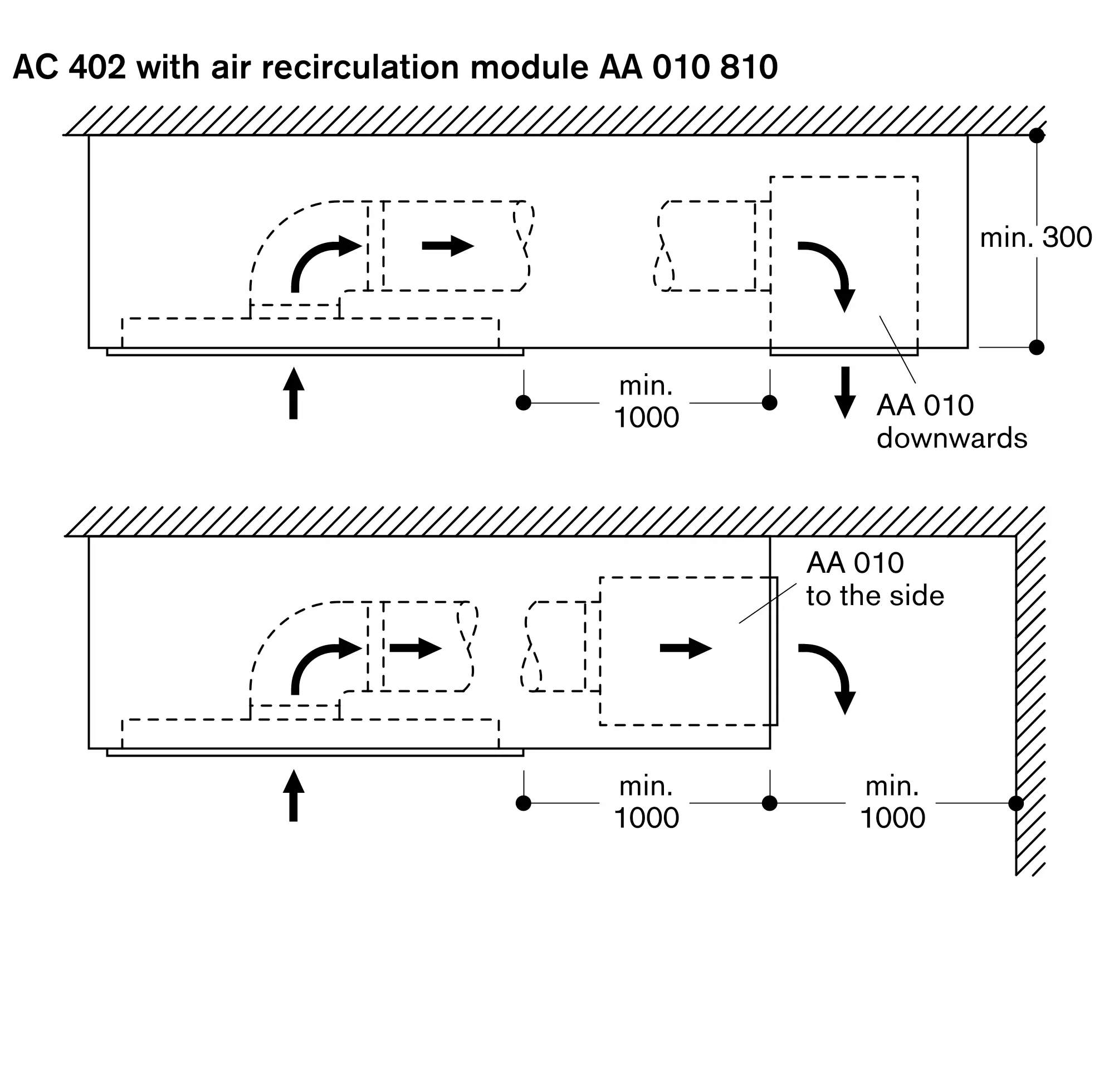

For air recirculation an external filter module is required.

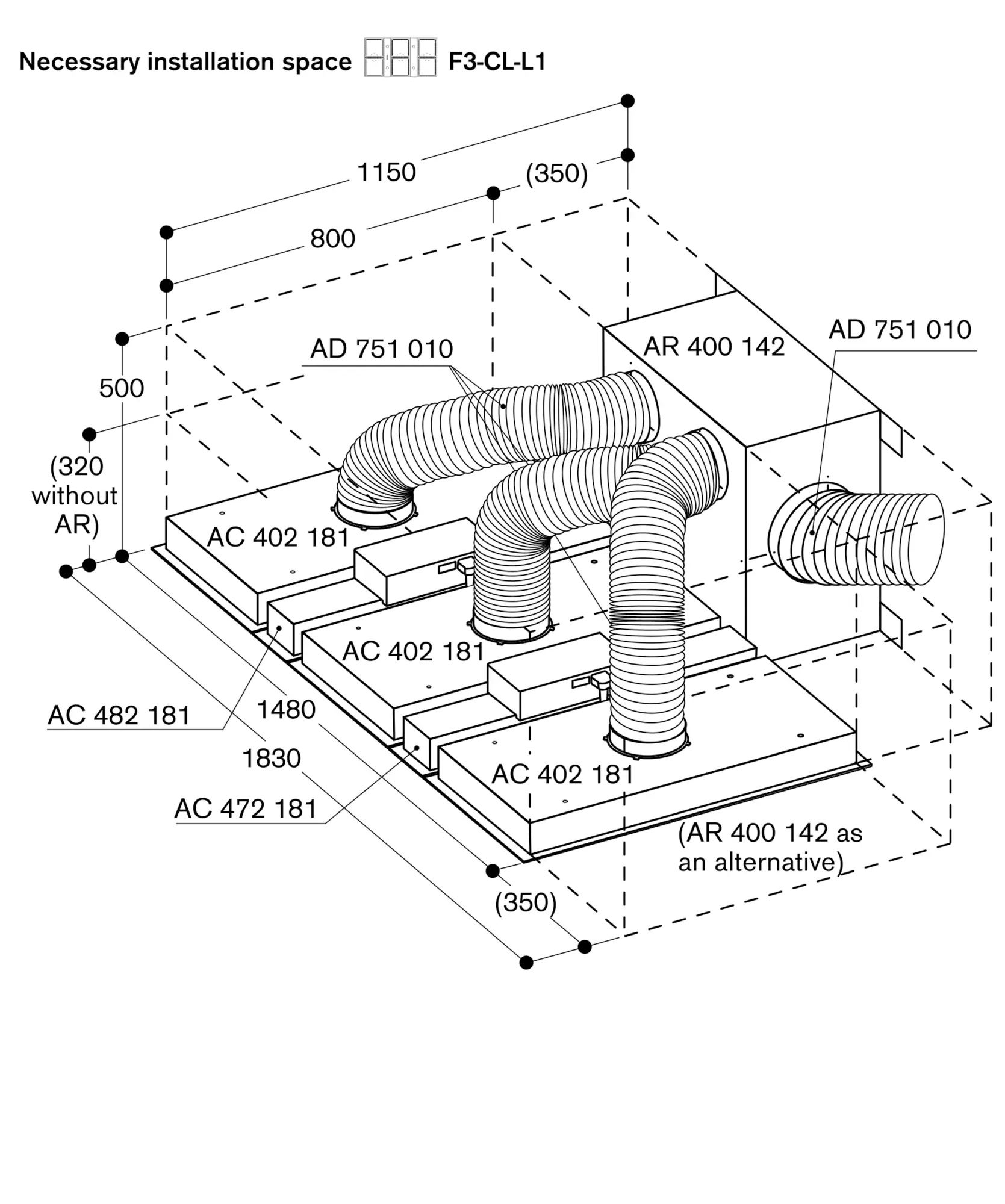

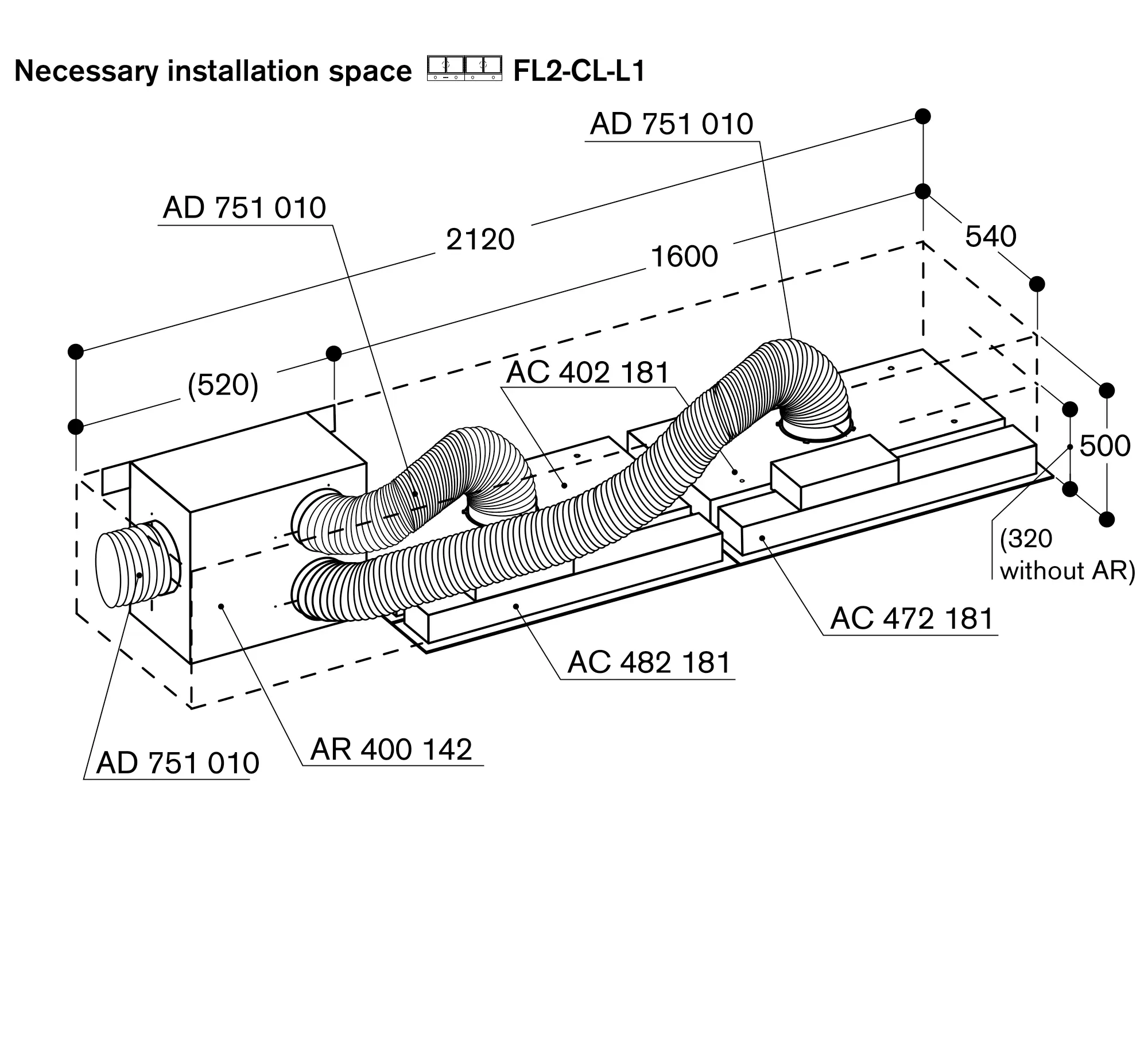

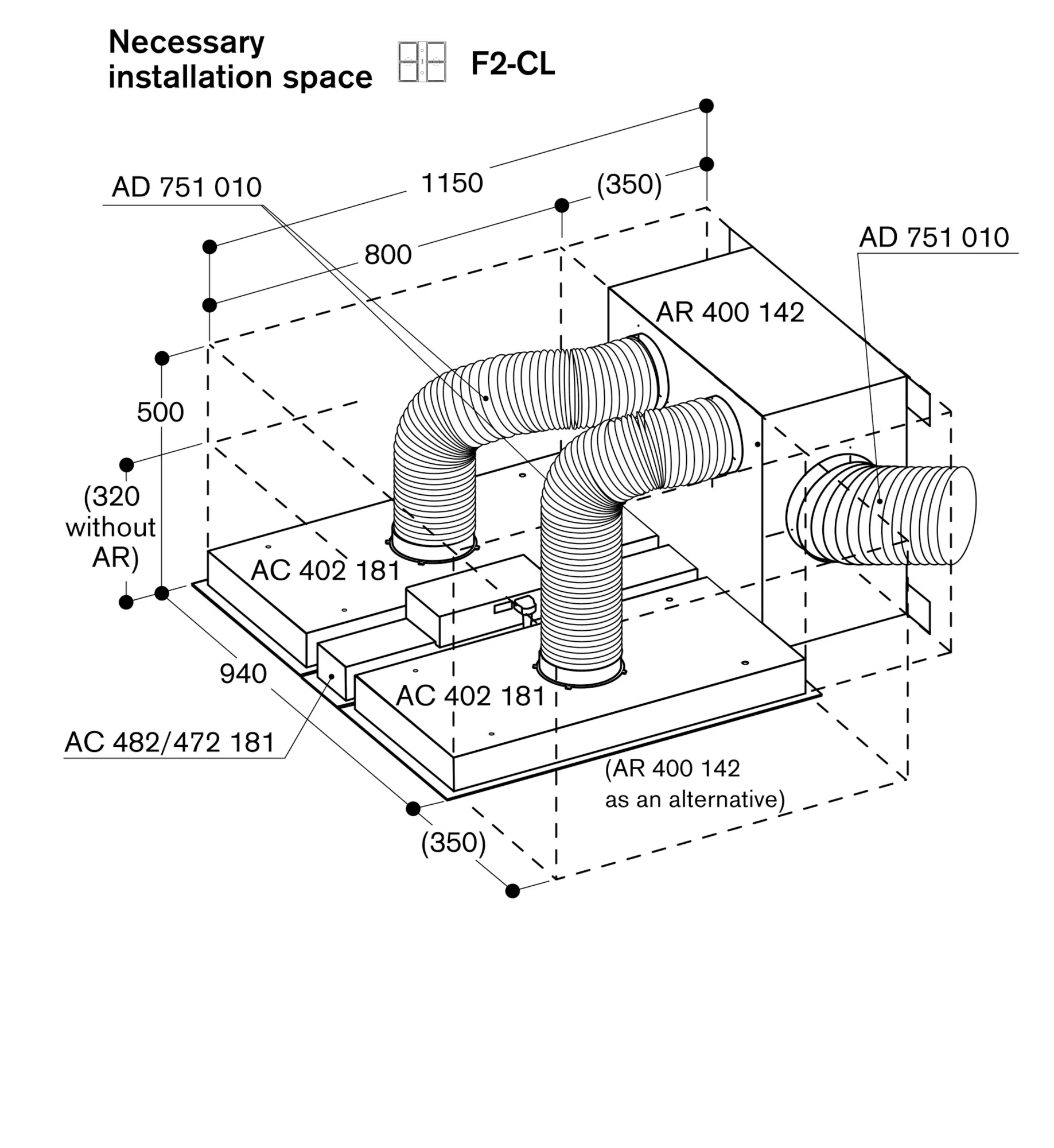

Max. 3 filter modules to be connected to remote fan unit AR 400 142.

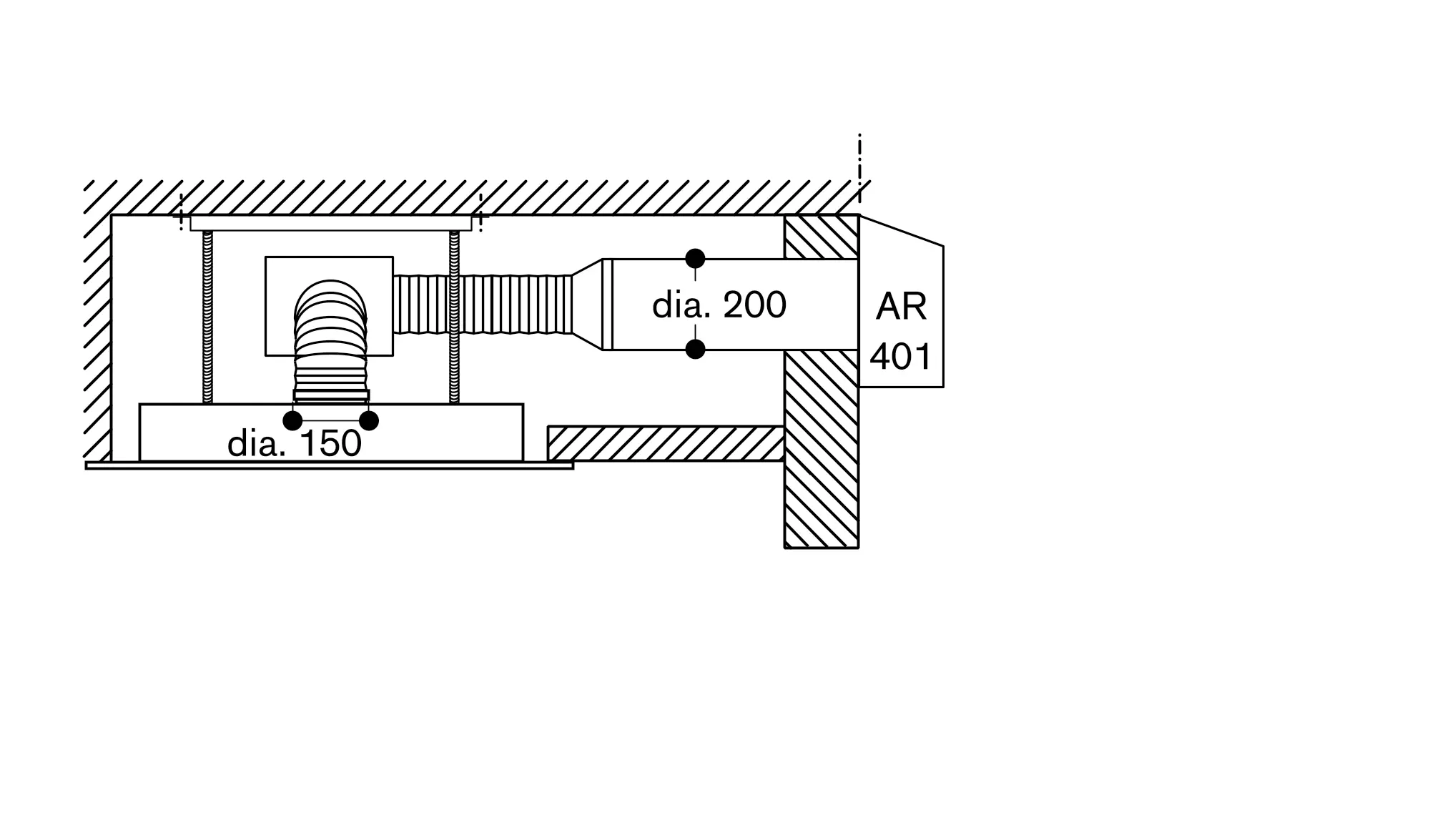

When installing remote fan unit within the ceiling or furniture block it must remain accessible through the ceiling cutout or another maintenance access.
