Technical Overview

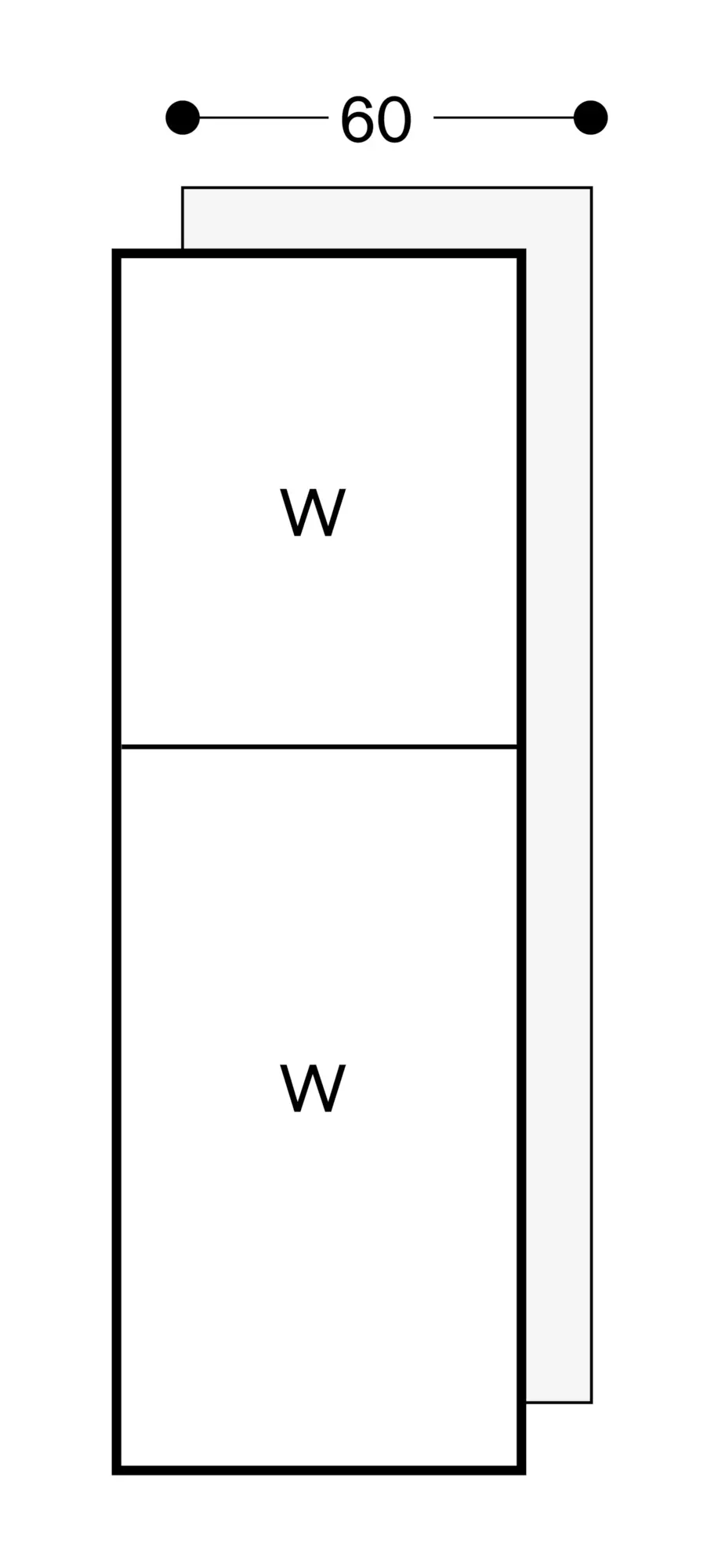

Width of the appliance
557 mm
Capacity of 75 cl bottles (EU 2017/1369)
80
Airborne acoustical noise emissions (EU 2017/1369)
32 dB(A) re 1pW
Range of temperature (°C)
5-20 °C
Airborne acoustical noise emission class (EU 2017/1369)
B
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Special Features
Two independently controllable climate zones
Extendable bottle trays in beech and aluminium
Consistent temperatures with exact control from +5 °C to +20 °C
Specifications
2 independently controllable climate zones
Consistent temperatures with exact control from +5 °C to +20 °C
Humidity control
Extendable bottle trays in beech and aluminium
Presentation light option
Low-vibration operation
Capacity 80 bottles
Electronic temperature control with digital display.
Touch keys.
Presentation light option in each climate zone, dimmable.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Cushioned door closing system integrated in door hinge.
1 activated charcoal air filter for both climate zones.
UV-protection.
Open-door and malfunction alarm.
Child lock.

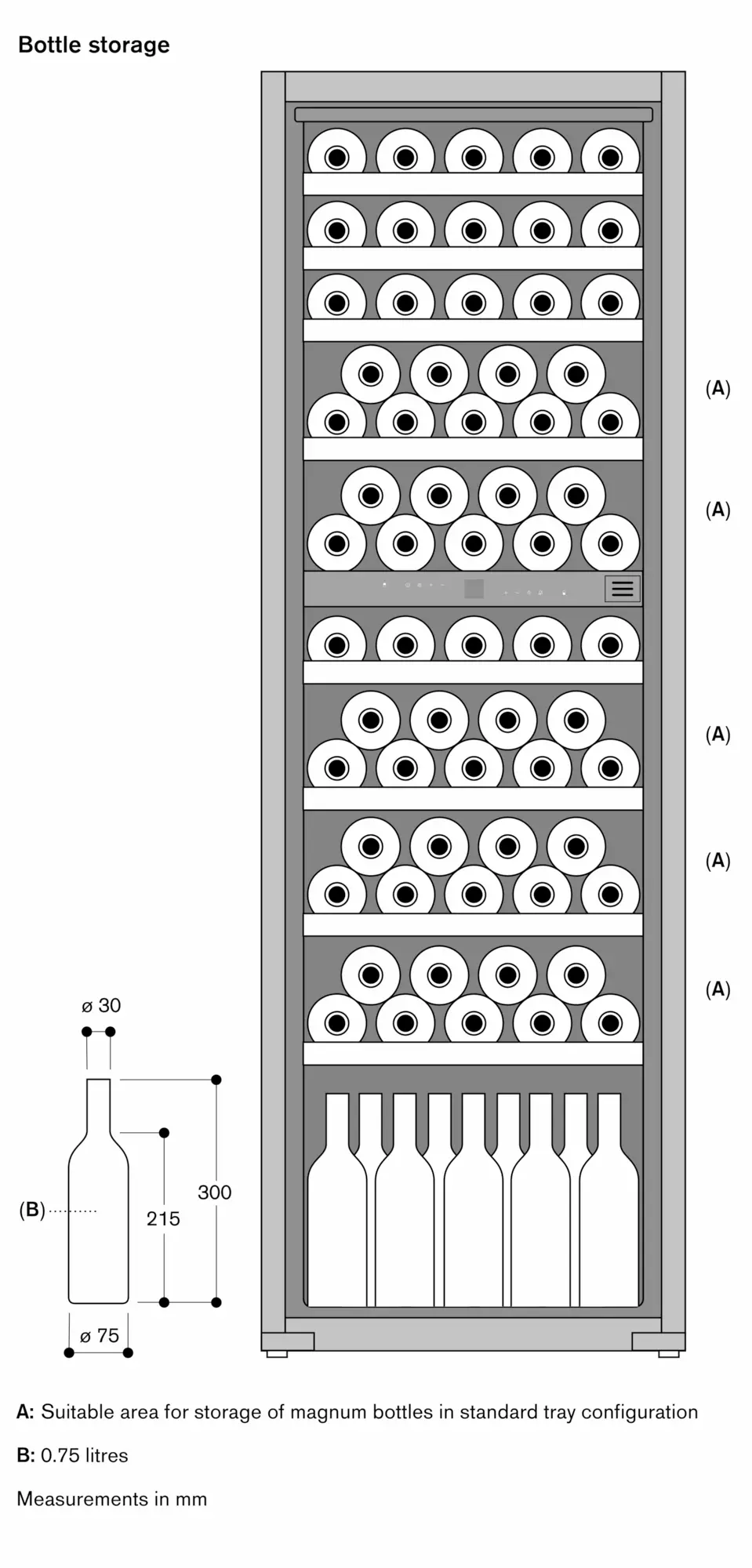

Capacity 80 bottles (based on 0.75 l standard bottles).
10 bottle trays, 8 of which are extendable.
Storage of magnum bottles possible.
LED lighting.
Noise level 35 dB (re 1 pW).
Flat hinge.
Door hinge right, reversible.
Height-adjustable feet by a total of 120mm
Door opening angle of 115°, fixable at 90°.
Max. door panel weight 20 kg.
Door panel thickness min. 16 mm/ max.22mm.
The mains socket needs to be planned outside the built-in niche.
For a side-by-side installation every appliance must be planned in its own niche.
No transport/operation above 1.500 m sea level.
Connecting cable 2.8 m with plug.
